Compatible Cable has provided custom cable assembly solutions to support a wide variety of unique requirements for the environmental industry.

Request a quote

Case Study - Environmental Custom Cable Assembly

The Challenge

Build a custom cable assembly for a manufacturer of energy management systems.

A client who manufactures systems that monitor and manage energy quality and power consumption came to Compatible Cable with a custom cable assembly requirement. For their new product line, they needed to connect two systems via a null modem cable with a custom pin out. Because of the tight space in the design, one end of the cable needed to be a horizontal right angle DB9 connector with only one thumbscrew.

The Solution

Compatible Cable designed and built a tooling approach to meet our client’s space limitations. After approval of the tooling specification, we presented our client with a CAD drawing of their cable, including the wiring diagram, electrical and mechanical characteristics, a comprehensive parts list, and a seal of RoHS compliance. Upon approval of the drawing, we produced first article samples of the new custom cable which met our client’s requirement.

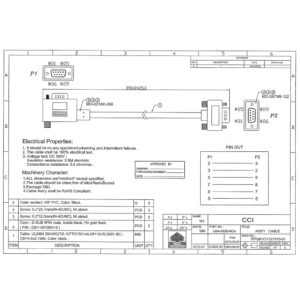

Right Angle DB9 Null Modem Custom Cable Assembly Drawing

Right Angle DB9 Null Modem Custom Cable Assembly Drawing

Right Angle DB9 Null Modem Custom Cable Assembly

Right Angle DB9 Null Modem Custom Cable Assembly

The Result

This cable became a regular production item for one of our client’s best-selling systems.

Are you an environmental technology company needing help with cable assemblies?

Request a quote
