Compatible Cable has provided custom cables assembled specifically to perform in harsh environments for the industrial computer industry. Our experience and resources allow us to produce solutions such as custom toolings and IP67 rated cables for our clients who build rugged systems.

Request a quote

Case Study - Industrial and Rugged Systems Custom Cable Assembly

The Challenge

Build a low-profile right angle micro USB cable.

A client who builds ruggedized computer and display systems came to Compatible Cable with a custom cable assembly requirement. They were building a small form factor system, and they needed a low-profile right angle micro USB cable manufactured for their new product line.

The Solution

After bringing in samples of right angle micro USB cables from our factory partners and alternative sources, we found that none of the existing cables were compact enough to fit into our client’s system. We designed and built a tooling with dimensions small enough to meet our client’s space limitations. We also realized during our investigation that our client had designed their system with the micro USB connector interface upside-down from the standard orientation. Given the small form factor and design, there was no way to correct the interface orientation on our client’s system, so we designed the custom tooling to build the cable with the standard outer-mold, but with the micro USB interface upside-down to match our client’s design. With the new tooling in place, we produced new samples which met our client’s requirement.

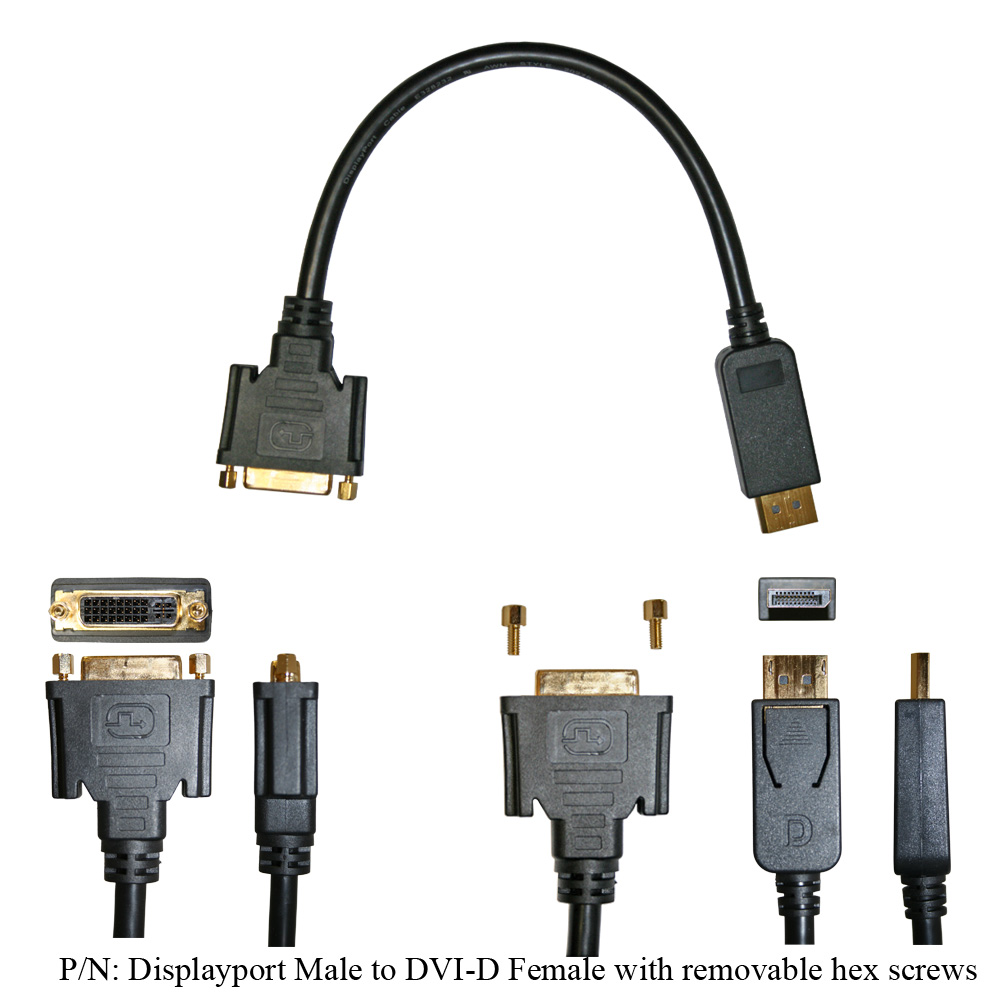

Displayport Male to DVI-D Female with removable hex screws custom cable assembly

Displayport Male to DVI-D Female with removable hex screws custom cable assembly

rugged

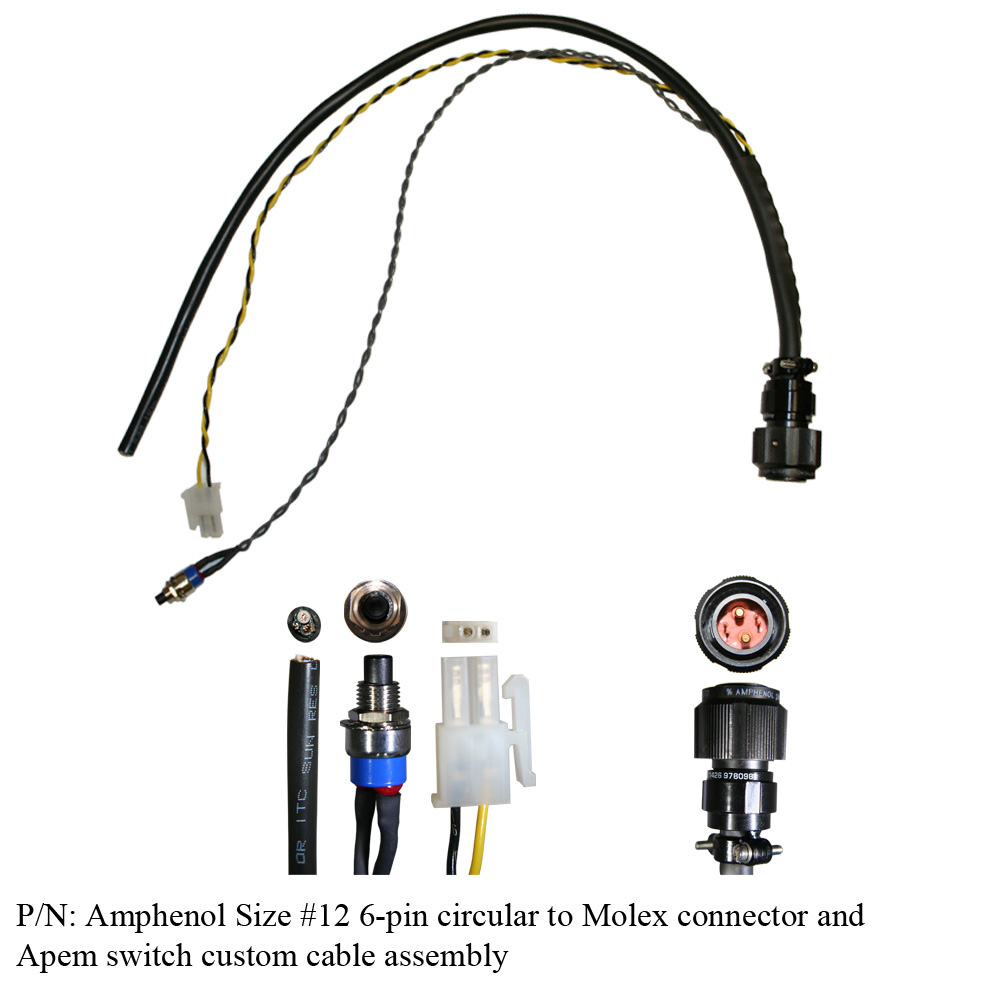

Amphenol Size #12 6-pin circular to Molex connector and Apem switch custom cable assembly

rugged

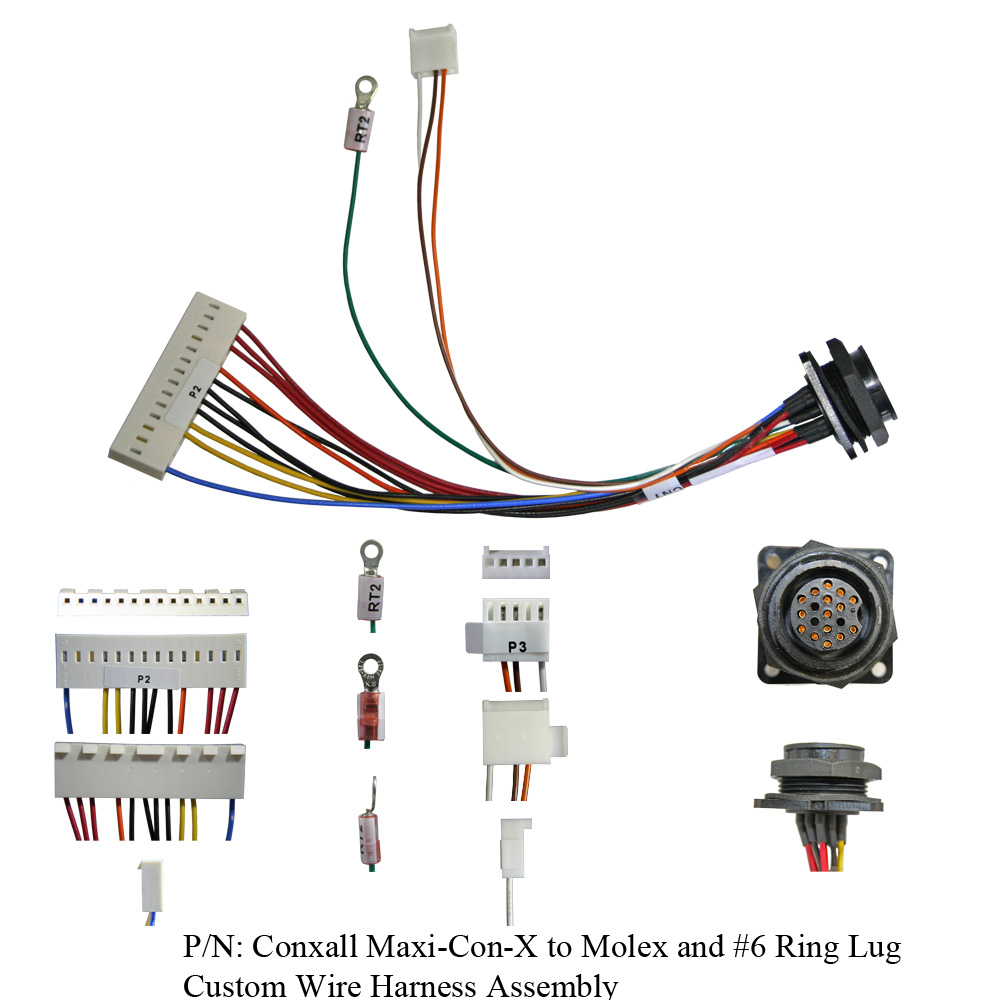

Conxall Maxi-Con-X to Molex and #6 Ring Lug Custom Wire Harness Assembly

rugged

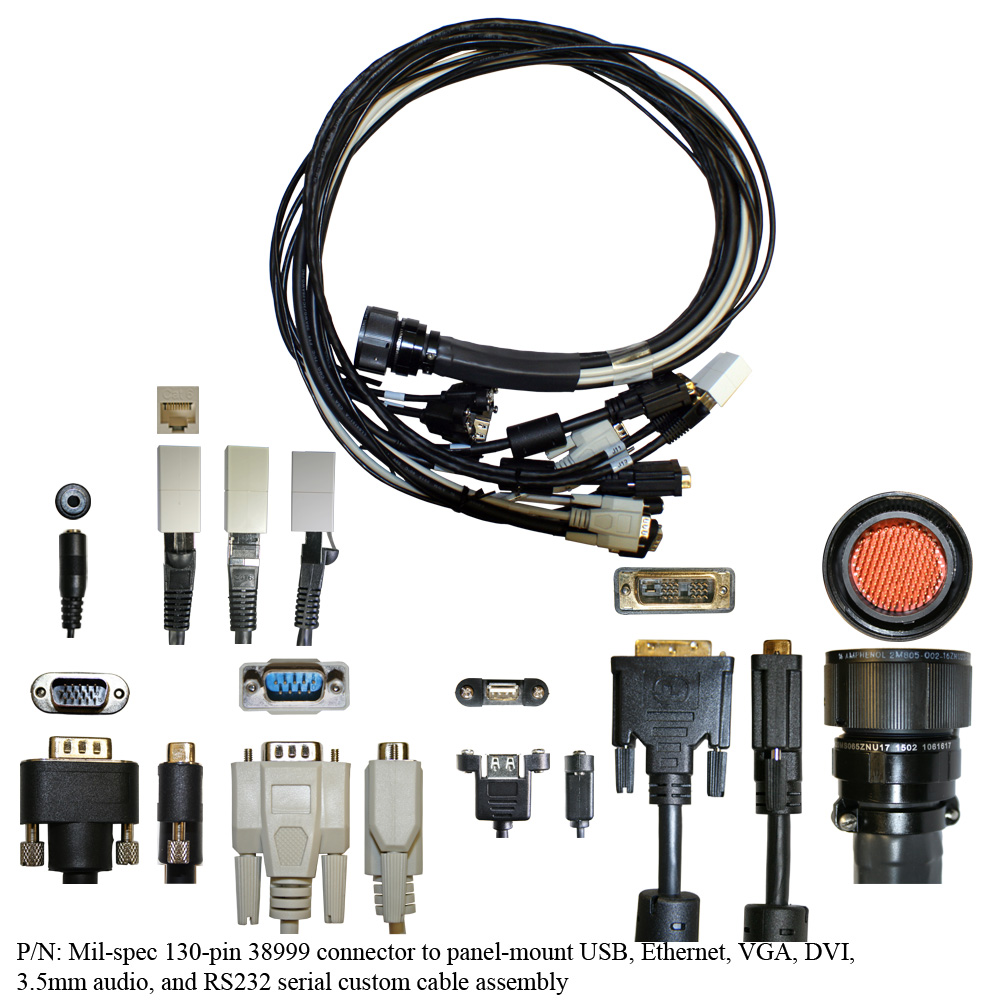

Mil-spec 130-pin 38999 connector to panel-mount USB, Ethernet, VGA, DVI, 3.5mm audio, and RS232 serial custom cable assembly

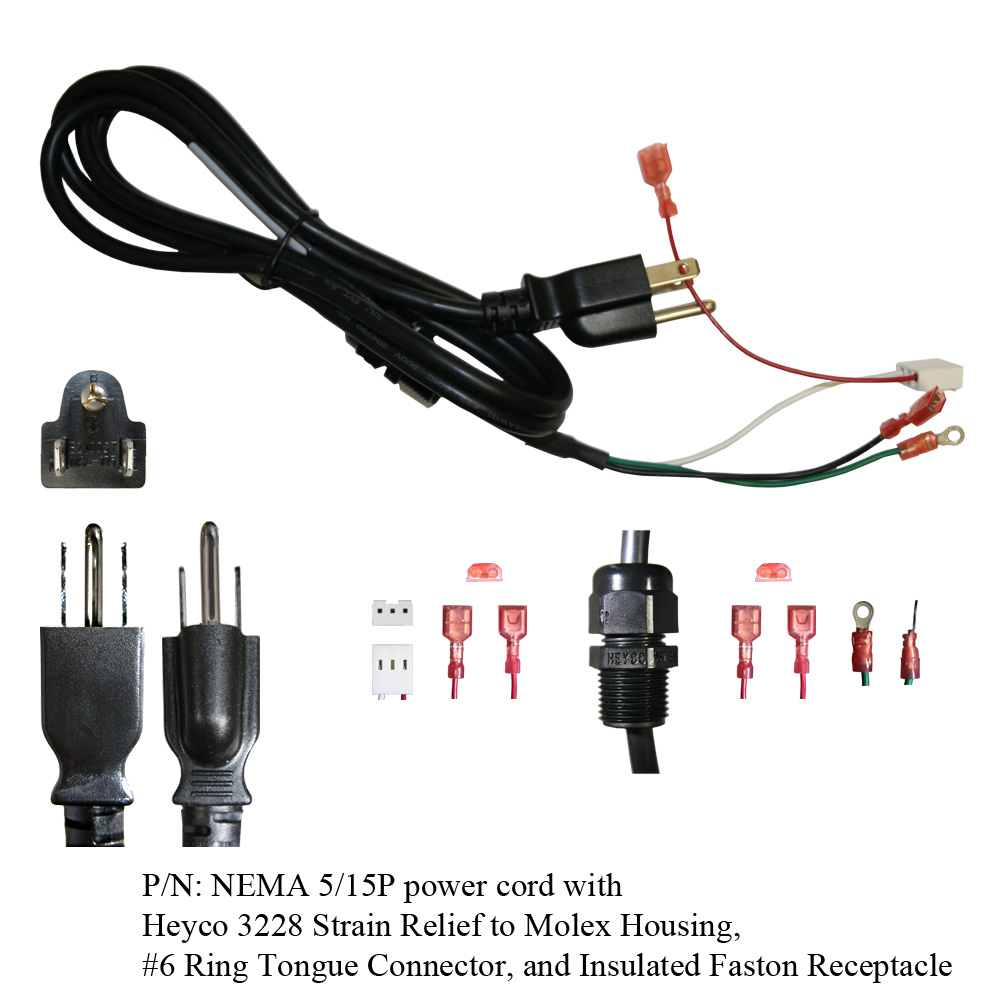

NEMA 5-15P power cord with Heyco 3228 Strain Relief to Molex Housing, #6 Ring Tongue Connector, and Insulated Faston Receptacle

NEMA 5-15P power cord with Heyco 3228 Strain Relief to Molex Housing, #6 Ring Tongue Connector, and Insulated Faston Receptacle

rugged

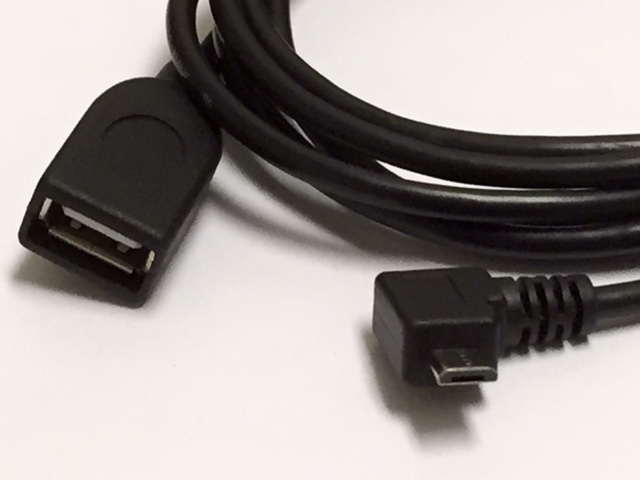

Inverted interface right angle micro-USB custom cable

The Result

This cable became a regular production item for one of our client’s best-selling systems.

Are you a ruggedized / industrial computer company needing help with cable assemblies?
