Custom Tooling & Molding
Compatible Cable provides custom tooling and molding solutions for cable assemblies used in industrial automation, embedded systems, electronics, medical devices, transportation, broadcast, and other OEM applications where standard cable assemblies aren’t enough.
From custom overmolding and molded strain reliefs to low-profile connector designs and specialized molded components, every solution is built to your drawings, specifications, or bill of materials to meet your application’s mechanical and electrical requirements.
We support both prototype and production quantities, developing tooling and molding solutions built to your exact specifications.
Built to Your Specifications
Our custom tooling and molding solutions are developed to support the unique mechanical, functional, and cosmetic requirements of your cable assembly. From custom overmolds and strain reliefs to specialized tooling and molded components, every solution is designed around your application and production requirements.
Capabilities Include
- Custom overmold tooling
- Injection molded cable components
- Strain relief and cable boot designs
- Custom connector overmolds
- Molded cable transitions
- Prototype and production tooling
- Low- and high-volume production support
- Domestic and offshore manufacturing options
Applications
Custom tooling and molding are used to improve cable protection, simplify installation, and create finished assemblies that meet demanding mechanical and environmental requirements. Whether the goal is improved durability, environmental sealing, or a cleaner finished product, custom molded components are designed around the needs of the application.
Common Applications
- Cable strain relief
- Connector overmolding
- Environmental sealing
- Cable transition protection
- Custom molded cable exits
- Ruggedized cable assemblies
- OEM product integration
- Branded and cosmetic overmolds
Designed for Your Application
| Solution Type | Typical Application |
|---|---|
| Custom Overmolding | Protects cable-to-connector transitions and improves durability |
| Molded Strain Relief | Reduces cable fatigue and extends assembly life |
| Right-Angle Overmolds | Simplifies cable routing in tight installation spaces |
| Low-Profile Designs | Supports compact equipment and space-constrained applications |
| Connector Modifications | Adapts standard connectors for application-specific requirements |
| Custom Molded Components | Creates unique cable solutions when off-the-shelf options aren't available |

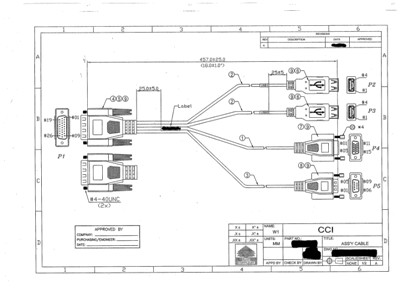

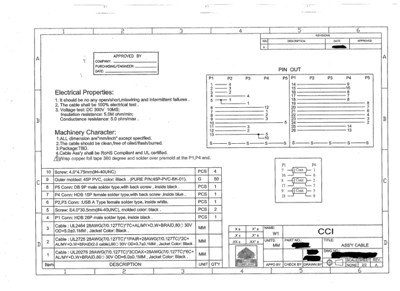

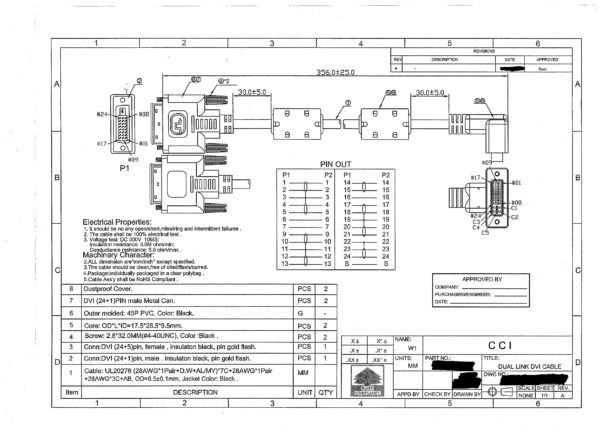

Custom Molded Cable Assemblies We've Built
Custom molding can add strain relief, environmental protection, mechanical durability, and a finished connector interface to a cable assembly. The examples below reflect several molded features we’ve developed around specific cable, connector, and application requirements.
Additional Assembly Services
Many customers requiring custom tooling and molding also source additional custom assembly solutions from Compatible Cable.
Frequently Asked Questions
Questions About Custom Tooling & Molding
What is custom cable overmolding?
Custom overmolding is the process of molding material around the cable-to-connector transition to improve strain relief, durability, environmental protection, and overall assembly performance.
What types of molding solutions do you offer?
We support custom overmolding, molded strain reliefs, low-profile connector designs, right-angle molded assemblies, and other application-specific molded cable solutions.
What industries use custom molded cable assemblies?
Our custom tooling and molding solutions are used across industrial automation, embedded systems, medical devices, robotics, transportation, broadcast equipment, environmental systems, security, and many other OEM applications.
Why choose Compatible Cable for custom tooling & molding?
We develop custom tooling and molding solutions built to your drawings and specifications, helping customers improve cable durability, reliability, and overall assembly performance from prototype through production.
Tell us about your project. If you need a prototype, production run, or help identifying the right solution, give us a call today or complete the form. We’ll follow up quickly.
